Perfect Pipe Specifications

Perfect Pipe is conventional RCP lined with a high-density polyethylene (HDPE) plastic lining that protects the concrete from corrosion in municipal wastewater systems. The pipe joints are connected by an internal connector that requires no field welding. Perfect Pipe combines the product benefits of robust concrete and durable synthetic liners; the ideal combination of a structure and a conduit. Perfect Pipe is also available as a wet cast, high-quality trenchless pipe in a wide range of sizes.

Overview

Standard

ASTM C76, ASTM C655, ASTM C443, ASTM C361, AASHTO M170, AASHTO M242, AASHTO M198, ASCE 27

Construct

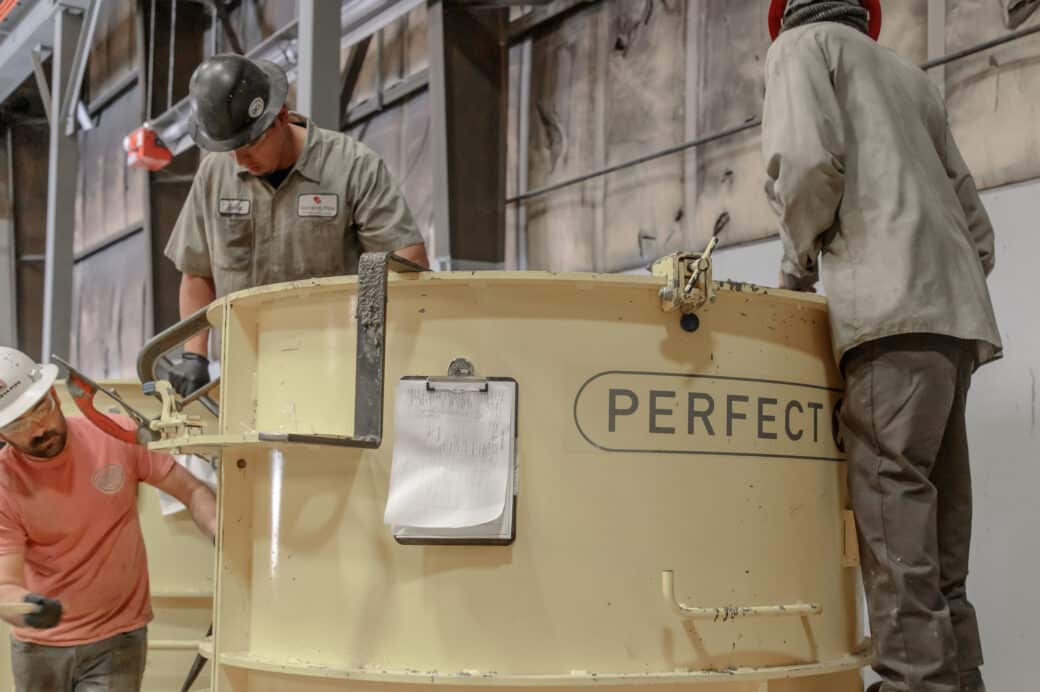

Wet cast using self-consolidating concrete (SCC)

Size

Available in standard diameters ranging from 12” to 120”, Perfect Pipe features an internal connector joint, which eliminates field welds in sizes up to 60”. Larger diameter pipe is available with field welded joints.

Capacity

Approximate flow capacities for specific pipe size is available through our sales team.

Joints

Traditional bell-spigot joint with external load distribution rubber and internal plastic coupler utilizing two tilting edge gaskets. Designed to withstand 36 psi pressure. Pipe in diameters 60″ and larger is available with field welded joints.

Principle Uses

HDPE-lined Perfect Pipe is an ideal choice in sanitary sewer environments to protect the collection system from corrosion. Perfect Pipe can be utilized in both standard and trenchless installations for the conveyance of sewage and most industrial water.



Product Guides

Click to begin your download

Perfect Pipe Technical Handbook | Owners and Engineers

Includes statement of qualifications, quality assurance, in-house engineering, manufacturing capabilities, product guide, drawings, specifications, record of North American installations, and material data sheets.

Drawings

Click to begin your download

24" Standard Perfect Pipe (600mm)

Click to begin your download

30" Standard Perfect Pipe (800mm)

Click to begin your download

36" Standard Perfect Pipe (900mm)

Click to begin your download

42" Standard Perfect Pipe (1100mm)

Click to begin your download

48" Standard Perfect Pipe (1200mm)

Click to begin your download

Perfect Pipe 3D View

Specifications

Click to begin your download

Perfect Pipe Standard Specification
