Design Guide for Differential Settlement

InfraShield® Design Guide —
Differential Settlement

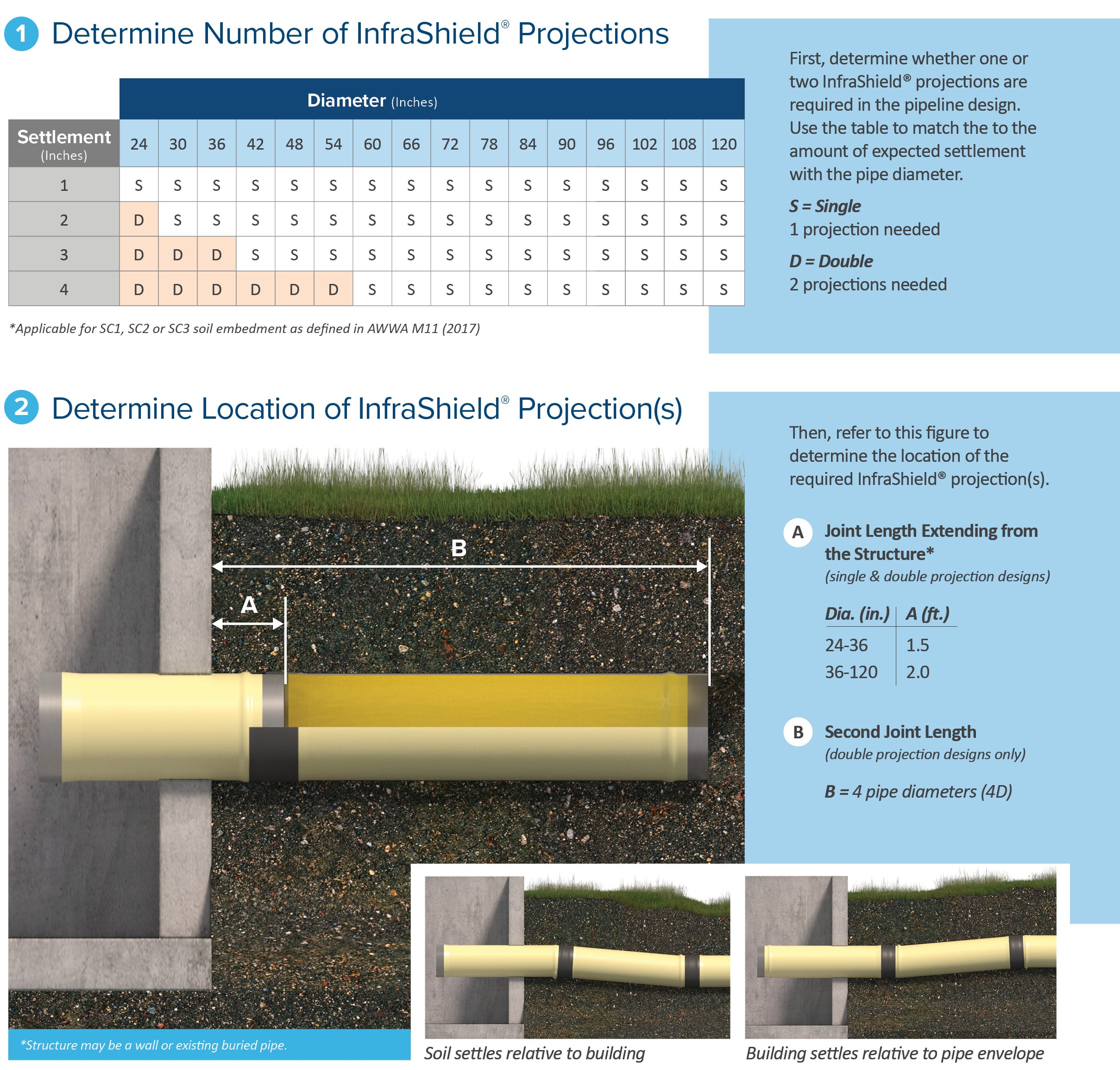

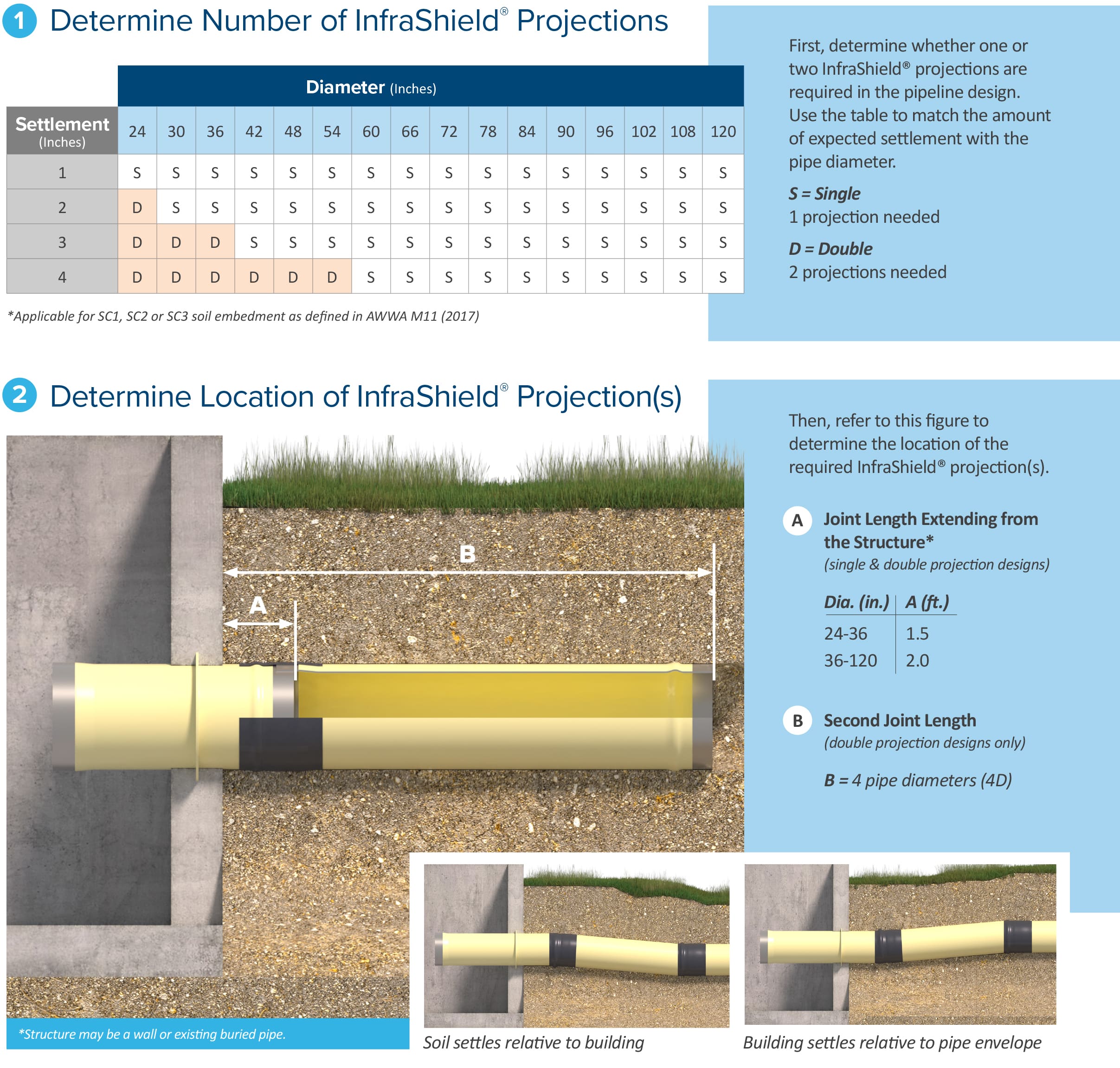

The number and location of InfraShield® projections required for effective performance in differential settlement applications is determined by pipe diameter and amount of predicted settlement. Use the following design guidelines to easily specify InfraShield® GRSP for areas with commonly encountered settlement ranges of up to four inches. (Contact your NWP representative for additional guidelines for applications with larger settlements and other pipe diameters.)

Download the InfraShield® Product Flyer & Design Guide (PDF)

Design Questions?

Contact us for help designing for differential settlement with the InfraShield® Joint System.
