Pump Lift Stations

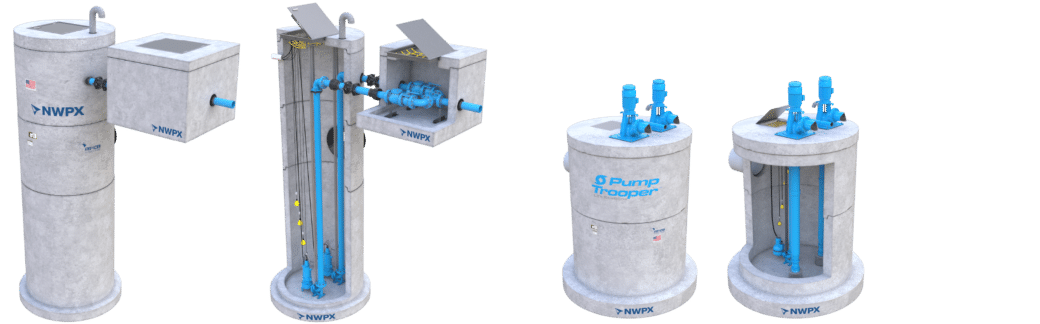

A packaged system for moving wastewater, stormwater, industrial water, and process fluids from lower to higher elevations. The NWPX PumpTrooper® integrates a precast concrete wet well, pumps, piping, valves, and automated controls in an easy-to-install turnkey solution.
Move Wastewater and Stormwater Reliably with Pre-Engineered Pump Lift Station Systems

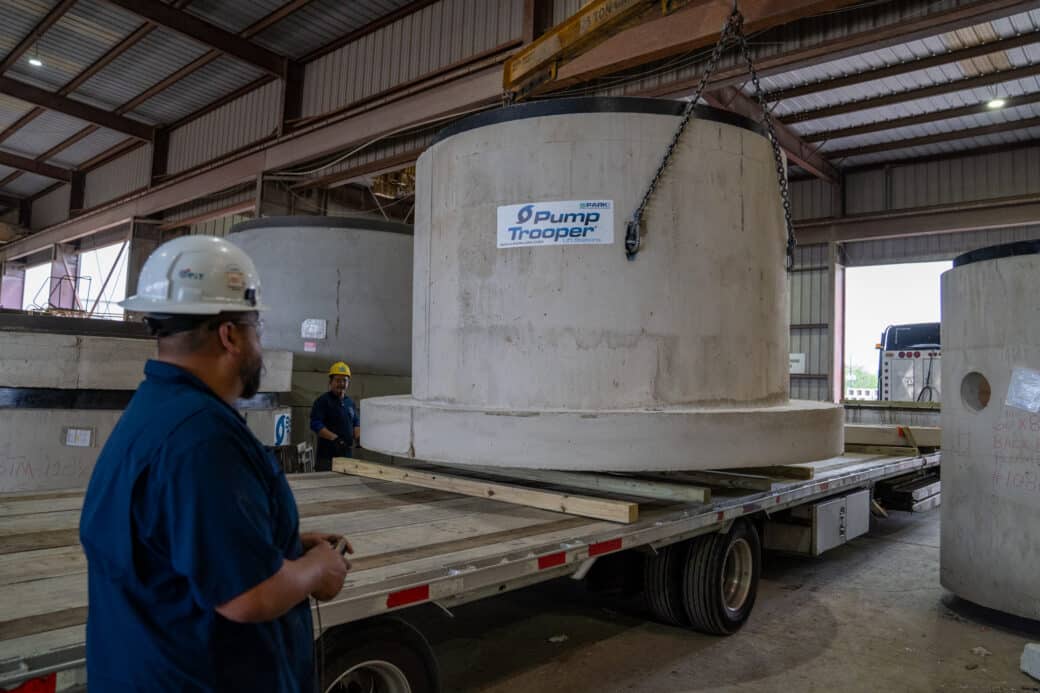

Packaged pump lift stations by NWPX are designed to simplify project planning by consolidating all major system components into a single, factory-assembled solution. With durable precast wet wells and vaults, pumps, controls, and internal piping pre-fabricated and pre-assembled prior to delivery, these systems reduce field coordination, minimize installation time, and help limit the potential for project delays.
NWPX’s in-house engineering team provides design support and detailed submittals to align each system with project specifications. Integrated control panels monitor liquid level, pressure, and flow to regulate pump operation, while factory testing and optional commissioning support ensure a reliable, high-performance system from start-up to long-term operation.
PumpTrooper®
Packaged Pump Lift Stations

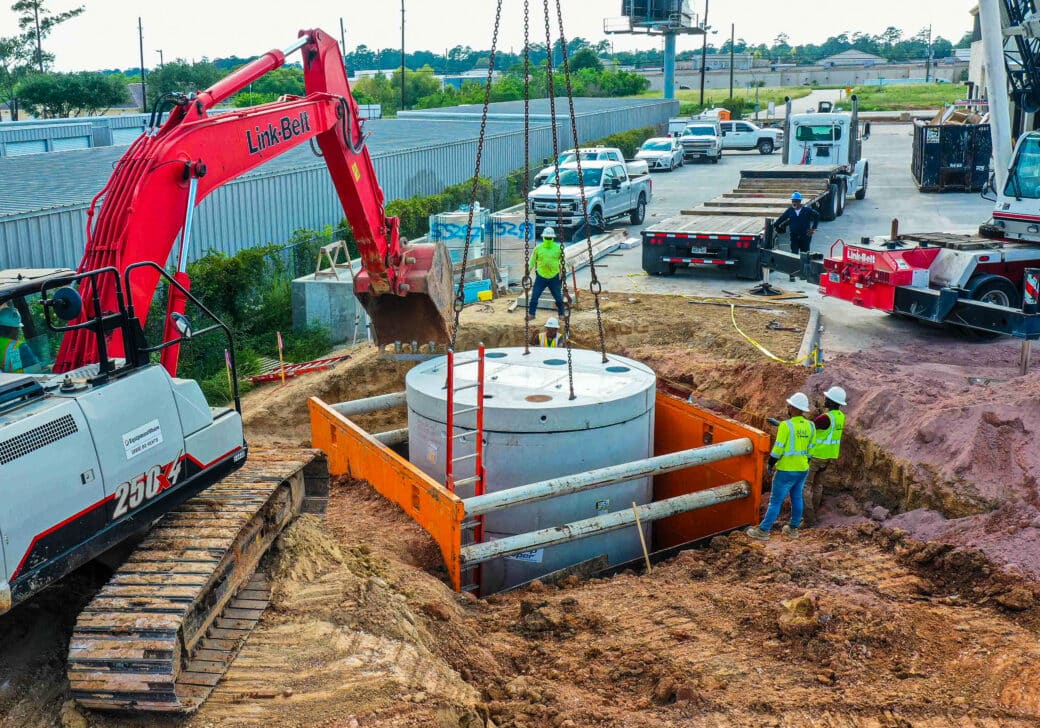

The NWPX PumpTrooper® system is an essential part of wastewater and stormwater infrastructure. With their plug‑and‑play design, PumpTrooper® units connect quickly to gravity-fed systems and begin operating almost immediately, bringing both short-term convenience and long-term efficiency to a project. Here’s a quick step-by-step of its fully automated operation:
- Inflow: Influent gravity flows into the wet well which collects wastewater or stormwater.
- Sensor activation: Lead ‘On’ Float or non-contact sensors monitor the water level in the wet well.
- Pumping process: When the water reaches a set level, the sensors activate one or more pumps to move the wastewater or stormwater upwards out of the wet well and to the next downstream location.
- Backflow prevention: Built-in check valves stop water from flowing back into the system.
- Controlled operation: Once the water drops to a predetermined low level, the pumps automatically shut off.
- Pump rotation: For Lift stations that contain multiple pumps, each additional pump will have a corresponding Lag ‘On’ Float, which will turn on the Lag pump to allow both pumps to run at once if one cannot keep up with the flow. The pumps alternate starts to ensure even wear and extend equipment life.
- Safety backup: Optional alarms and backup power protect against flooding, system failure, and power outages.
PumpTrooper® Lift Stations include a centralized control system that monitors wastewater level, pressure, and flow rate. In addition to standardized visual and audio alerts, NWPX offers a web and mobile app that continually monitors pump activity and two-way communications enable remote control functionality.
Available Models
- Submersible non-clog pumps
- Submersible macerating pumps
- Dry pit pumps
- Self-priming pumps
- Turbine pumps
Applications
- Residential developments and multi-family housing
- Commercial properties, including retail, office, and hospitality
- Municipal wastewater and stormwater systems
- Transportation infrastructure and roadway drainage
- Parks and recreational areas
- Agricultural and livestock operations
- Industrial and manufacturing facilities
- Remote or decentralized service areas
