Joint Detail: Bell and Spigot Lap Weld Joint

Lap weld joint pipe installation>




The bell and spigot lap weld joint is one of the most commonly used joints in steel water and wastewater transmission pipelines. Proven performance in the toughest applications, easy to install, and available for all pipe diameters, this joint is an economical means of restraint for high-pressure AWWA steel water pipes.

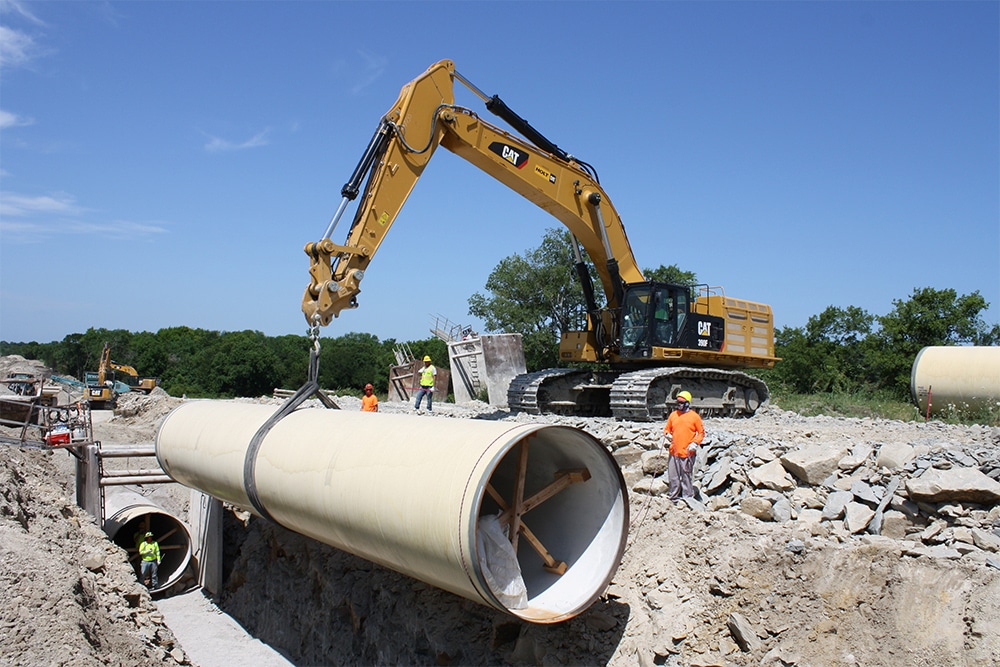

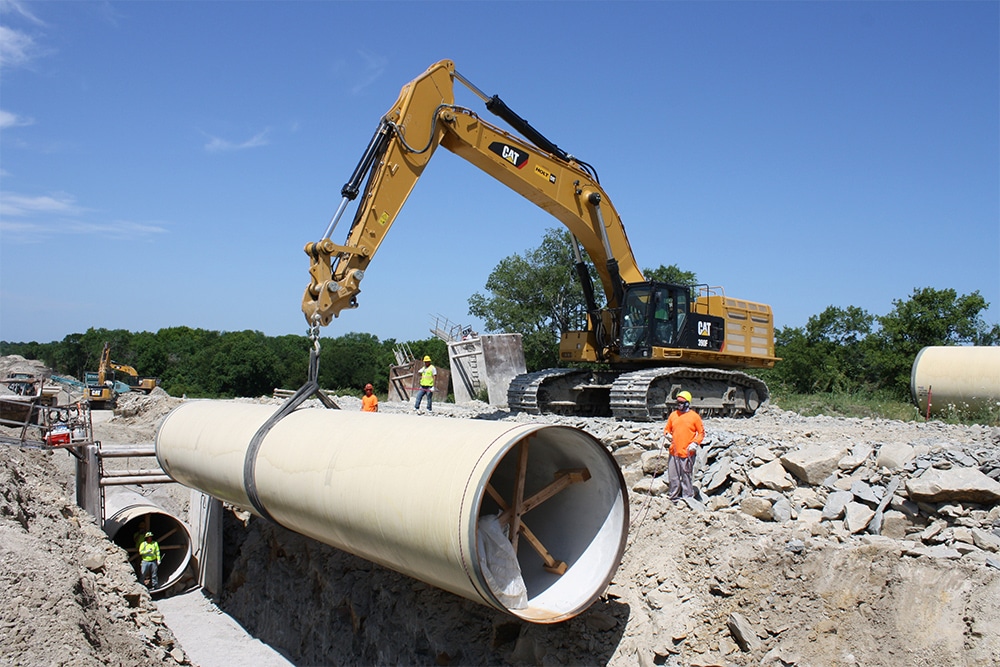

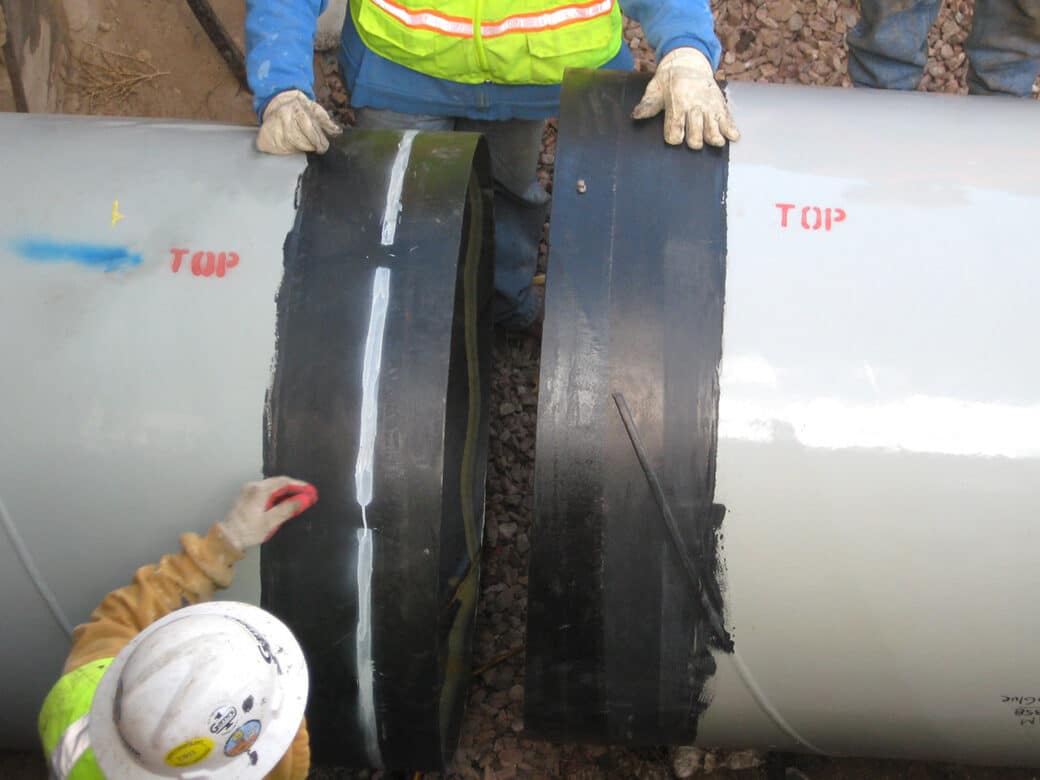

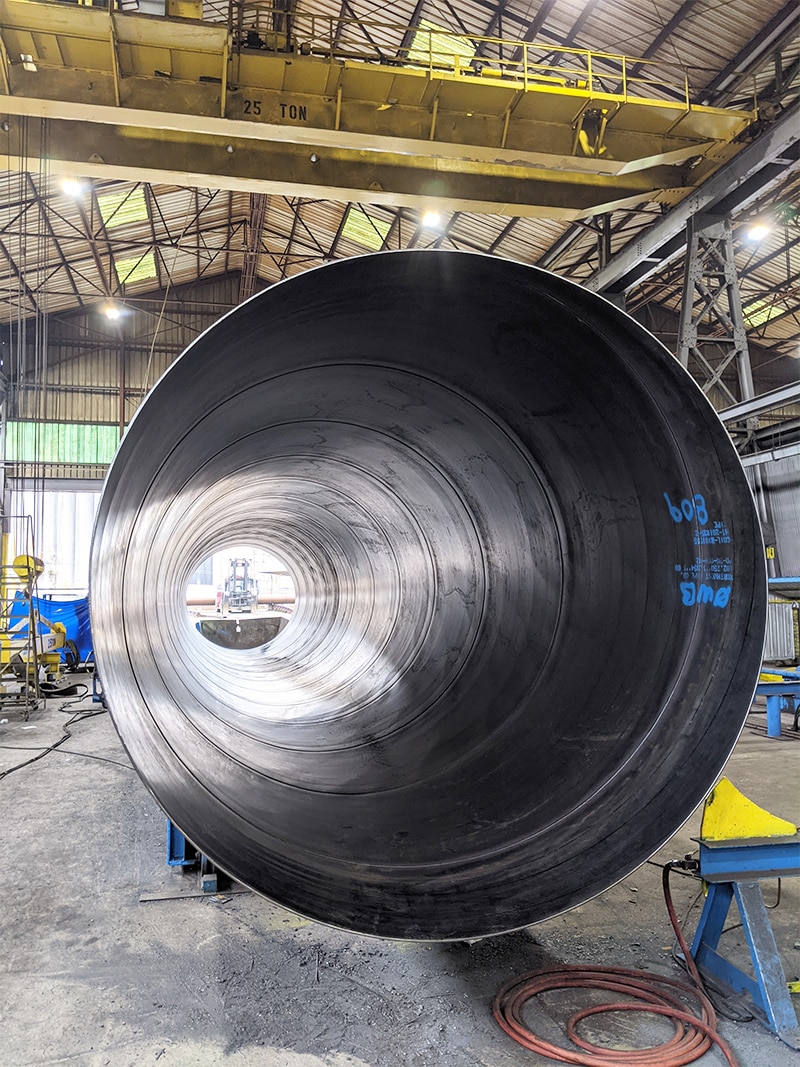

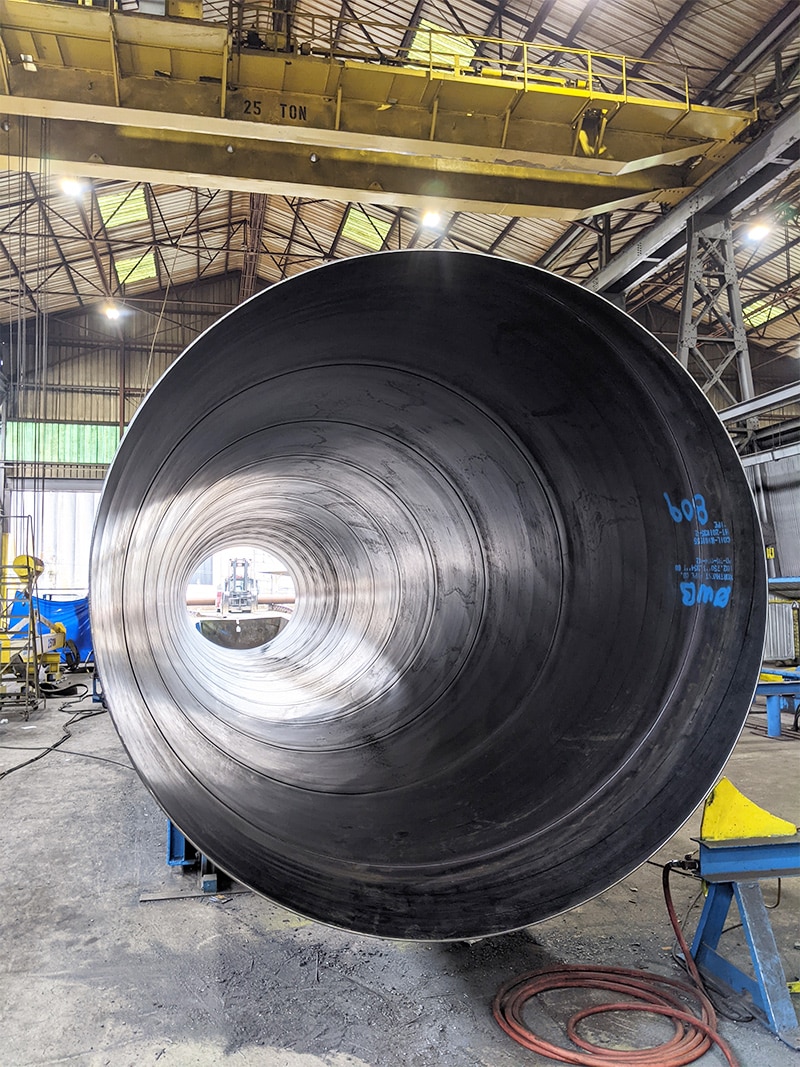

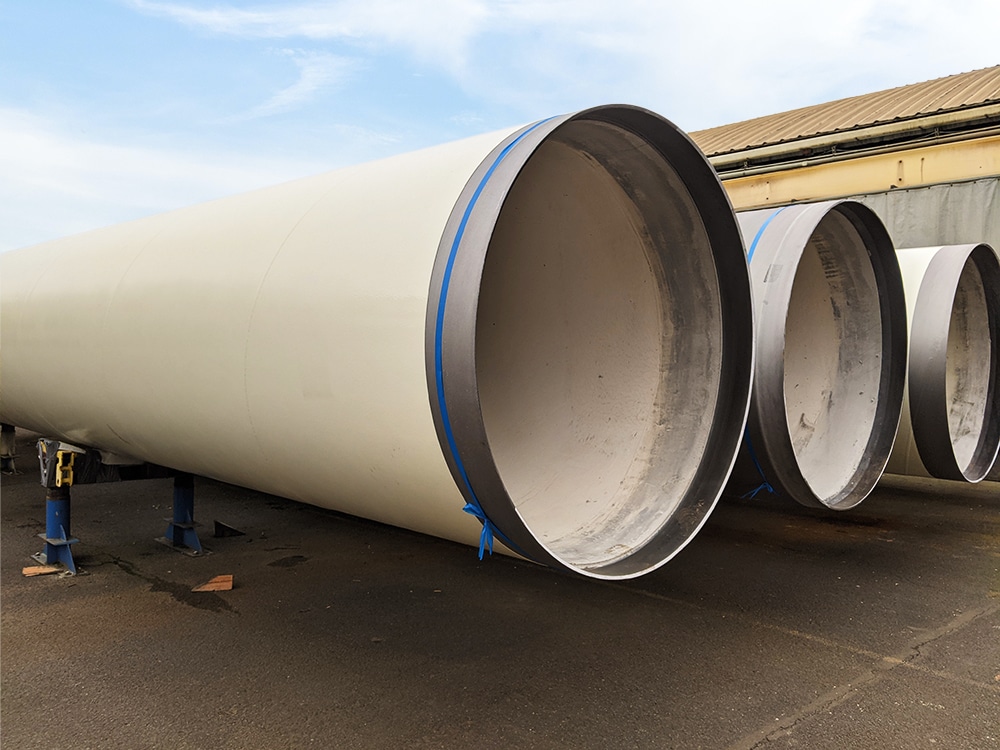

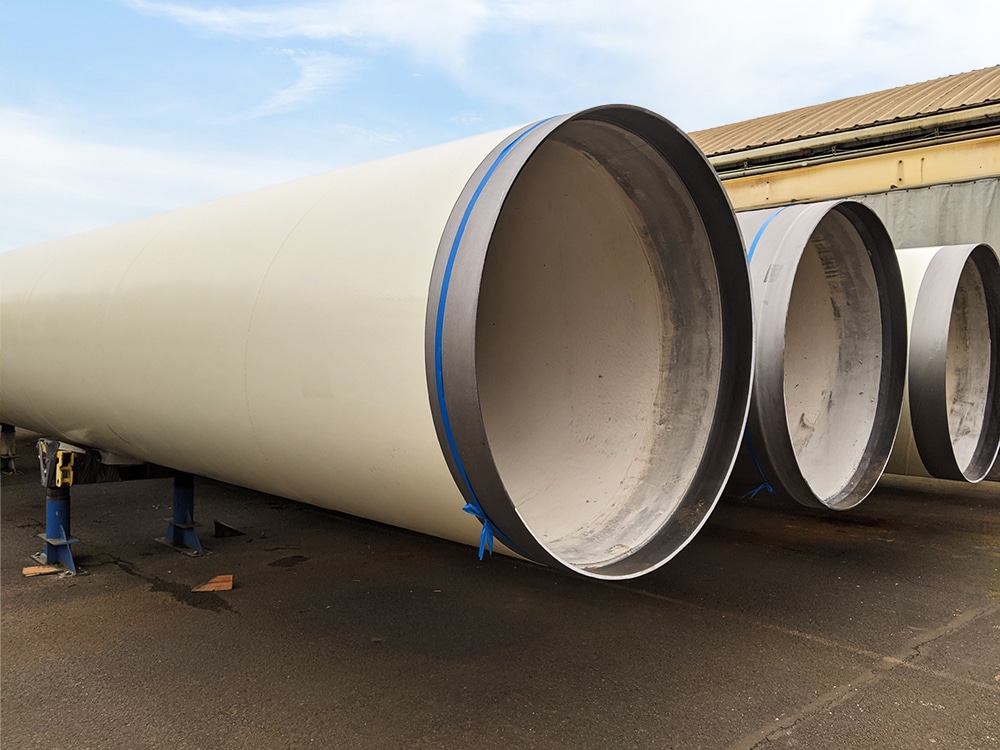

The joint is constructed by expanding one end of pipe to create a “bell” shape. The other end of the adjacent plain end pipe segment is referred to as “spigot.” Installation teams insert the spigot into the bell end from a slight horizontal angle as they engage. The pipe are then secured with a single or double full-circumferential fillet weld, the weld being equal in size to the thickness of the thinner piece joined. Lap-welded pipe with an inside diameter of 30” or greater can be welded from the inside. Interior welding is typically used for the “weld after backfill” method of buried pipe installation. With this process pipe is joined and heat shrink sleeves installed prior to backfilling of the pipe. Interior welding is then completed after backfilling, which greatly increases pipe installation rates and lowers the overall cost of the project.

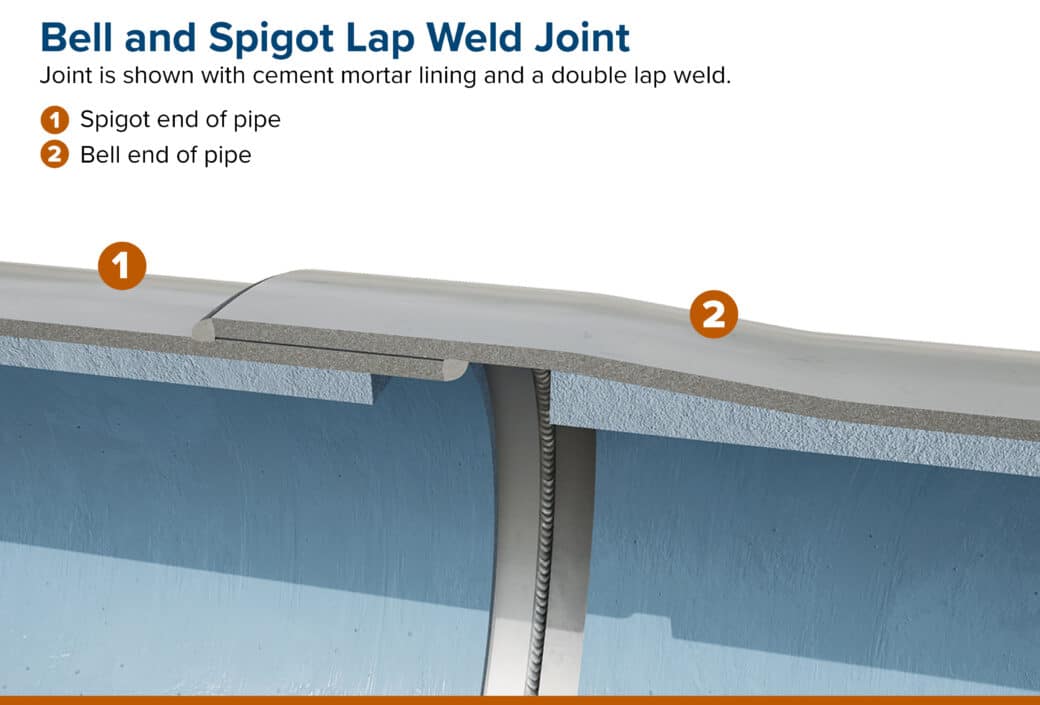

Lap Weld Joint Illustration


The minimum overlap of the assembled bell and spigot sections is 1 inch/25 mm, or three times the thickness of the belled pipe, whichever is greater. No field welds should be closer than 1 inch/25 mm to the nearest point of tangency to a bell radius. Joint fabrication tolerances follow ANSI/AWWA C206.

Weld integrity inspection and testing follow standard practices outlined in AWWA C206, Field Welding of Steel Water Pipe. Nondestructive testing (NDT) of welded joints include visual inspection and hydrostatically testing of the pipeline and appurtenances, unless alternative nondestructive methods are approved by the purchaser.

The bell and spigot joint allows for angular deflection by pulling the spigot relative to the bell as segments are connected. For further deflection, the bell can be mitered up to 5 degrees. This allows for angular deflection without the use of a fabricated elbow and is useful in accommodating minor alignment changes or long-radius curves

Welded lap joints are common in large-diameter buried steel pipelines for water transmission and follow the guidelines outlined in AWWA M11 and AWWA C206. Their lower construction cost and proven history of use make them a trusted, economical joint that remains popular today.

Benefits of Lap Welded Joints
  • Available for all pipe diameters
  • Can accommodate very high working pressures
  • Easy assembly and fit-up in the field
  • Proven performance history
  • Economical method for restraining longitudinal thrust in buried pipes
  • Joint allows for angular deflection
  • Excellent performance during seismic events
Best used for:
  • Water transmission pipeline
  • High pressure pipelines
  • Sites with uneven soil settlement
  • Open trench installation
  • Areas of high seismic activity

The bell and spigot lap weld joint has a proven performance history in steel pipe. To learn more about this joint, or see if it’s a beneficial solution for your project, please contact our regional support team.
